HC-64"-94" High speed computerized multi-needle lock stitch Quilting Mattress Machine


mattress machine,HC-64-94 quilting machine

Mattress Machine Applications:

Mattress Comforter Clothing Handbag Glove Sleeping bag all bed equipment of pattern.

Special Function:

1.Multi-jump large pattern
2.Speed can be changed digitally
3.Function of automatic stop on breaking of thread (optional)
4.Needle raising (optional)
5.One unit fabric presser
6.Segmented pattern editing
7.Easy and quick pattern editing capability
8.Large quantity of selectable patterns ready for use
9.Use Panasonic servo motor (optional)
10.Machine speed can reach 450-550 rpm, stitch size of 2m-6mm
11.Automatic pattern adjustment that solves the problem of pattern distortion when quilting on thick material
12.Patented machinery design

Quilt patterns:

mattress machine quilt pattern pattern in pattern

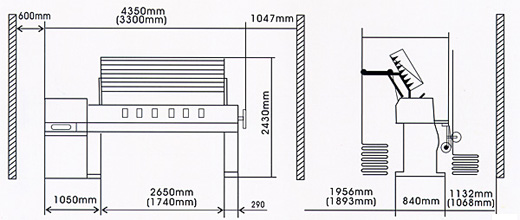

Installation Layout:

mattress machine

Technical Specification:

SPEC\FUNCTION WEIGHT WORKING WIDTH CATTIAGE STROKE SEWING SPEED RATED
VOLTAGE
POWER OVERALL SIZE
HC 94 INCH
3 NEEDLE
2300kg 2450mm 250mm 400-550n/m 380V/220V  50Hz/60Hz 4kw (L)4350mm
(W)1050
(H)1780
HC 94 INCH
2 NEEDLE
2100kg 2450mm 250mm 400-550n/m 380V/220V  50Hz/60Hz 4kw (L)4350mm
(W)1050
(H)1780
HC 64 INCH
3 NEEDLE
1800kg 1700mm 160mm
100mm
400-600n/m 380V/220V  50Hz/60Hz 3.5kw (L)3270mm
(W)1050
(H)1750
HC 64 INCH
2 NEEDLE
1600kg 1700mm 160mm
100mm
400-600n/m 380V/220V  50Hz/60Hz 3.5kw (L)3270mm
(W)1050
(H)1750
