HC-QG-E Computerized panel cutting machine, Panel Cutter


panel cutting machine,computerized panel cutting machine

Panel Cutter Special Function:

1.Computer controlled panel cutting machine.
2.Designed to work with HC2000 , HC-94-3JE or HC-94-3JA Quilting Machine or on its own .
3.Machine is capable of cutting quilted panels, borders, trimming sides or material rolling.
4.PLC control and touch screen for easy operation .
5.Encoder,Infrared setting of panel lengths for accurate panel cutting
6.Air Sharpening device to maintain cutting blades ,Air material pressing system and Air material pulling system to press and pull material automatically..
7.Reliable border feed and cutting mechanism.
8.Auto Working Table and width adjustable design for precise length .

9.Stable ,vibration free operation with low noise and high efficiency.

Technical Specification:

 Frame size  (L×W×H)  3750×2500×2100mm
 Weight  1500kg
 Length of board  2000mm
 Thickness  3-80 mm
 Width  100-2500 mm
 Speed  7000 mm/min
 Power  3KW
 Power supply  380V/50Hz, 220V /60Hz
 Air pressure  0.4-0.8 Mpa

Panel Cutter Applications:

Mattress panel, pads, bedspreads, bedding, comforters and so on.

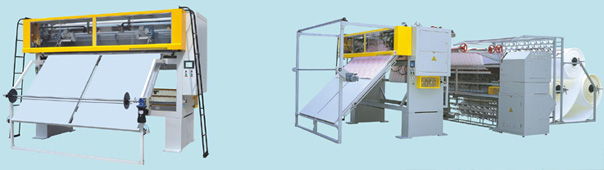

Products:

panel cutting machine panel cutter panel cutter
Panel cutting machine Panels Cut Borders Cut

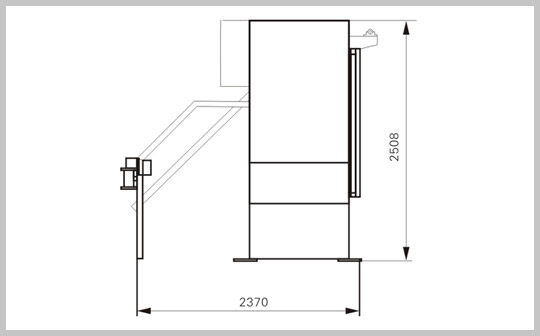

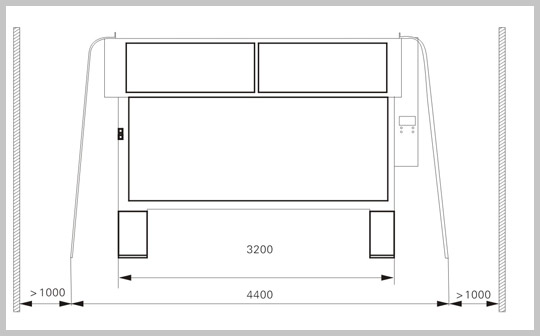

Installation Layout:

panel cutter
panel cutter
