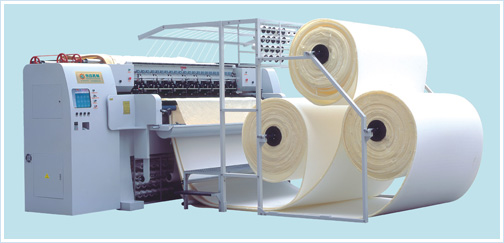

HC-94-3JE High speed computerized multi needle Chain Stitch quilting machinery

quilting machinery,computerized quilting machinery

Quilting Machinery SPECIAL FUNCTION:

 New Fabric loading design. Easy loading material.
 New body design.
 Thread brake detector.
 Using air cylinder for thread cutting tail length.
 Needle rod design is reliable and stable.
 Improved quilting software control system allows more precise and stable quilting operations.
 Error problem detection system.
 CAD Pattern drawing pattern system allows you to create your own designs.
 Machine comes with 100-300 design patterns.

Technical Specification:

 Size (length*width*height)  4900X1220X2000(mm)
 Weight  4000kg
 Quilt width  2450mm
 Rotation speed  600-950RPM
 Production speed  65-180  m/h
 Needle type  160/23  180/24
 Needle arrangement   (50.8,76.2,127) (76.2,76.2,152.4)
 Max. horizontal movement  450mm
 Needle space  25.4mm
 Power supply  380V/220V 50Hz/60Hz
 Stitch size  2-7 mm
 Power  5 KW
 Quilting thickness  ≤60mm

Applications:

Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.

Products:

quilting machinery pattern quilting machinery pattern quilting machinery pattern quilting machinery pattern

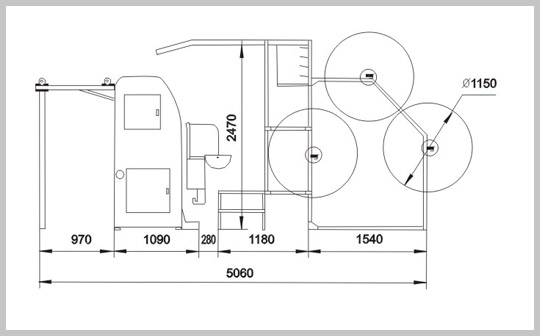

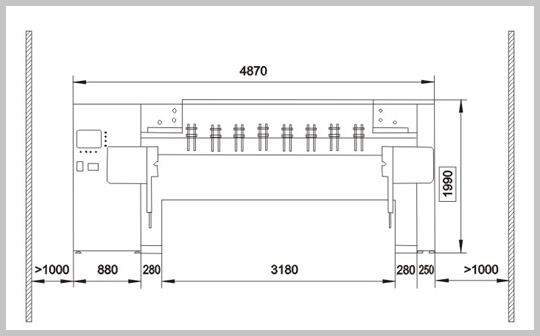

Installation Layout:

quilting machinery installation
quilting machinery installation
