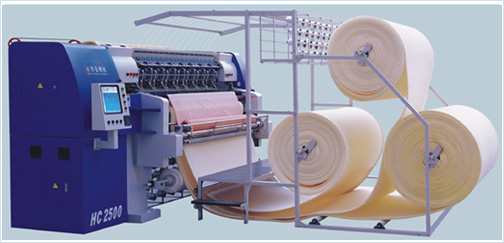

HC2500 High speed computerized multi-needle Chain Stitch quilting machine

(180° standard pattern and 360° Tack & Jump pattern )
quilting machine

SPECIAL FUNCTION:

·New Fabric loading design. Easy loading material.
·Tilted body design. Easy to operate and maintain.
·Thread brake detector
·Using air cylinder for thread cutting tail length
·Operated using high quality sealed bearings that do not need lubrication.
·Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness.
·Emergency safety devices
·Improved quilting software control system allows more precise and stable quilting operations.
·CAD Pattern drawing ,pattern system allows you to create your own designs.
·Machine comes with 100-300 design patterns.
·Error problem detection system.

·Pattern compensation.

Technical Specification:

 Size (length*width*height)  5200X1500X2000(mm)
 Weight  4500kg
 Quilt width  2450mm
 Rotation speed  600-1200RPM
 Production speed  80-230m/h
 Needle type  120/21,140/22, 160/23, 180/24
 Needle arrangement   (50.8,76.2,127) (76.2,76.2,152.4)
 Max. horizontal movement  450mm
 Needle space  25.4mm
 Power supply  380V/220V 50Hz/60Hz
 Stitch size  2-7 mm
 Power  7 KW
 Quilting thickness  ≤80mm

Applications:

Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.

Products:

quilt machine quilting machine pattern quilting machine pattern quilting machine quilting machine patterns
quilting machine patterns quilting machine patterns quilting machine quilting machine quilt machine

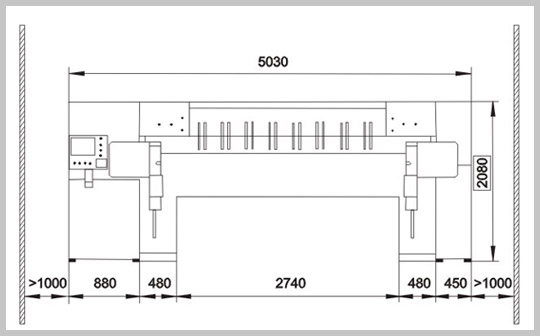

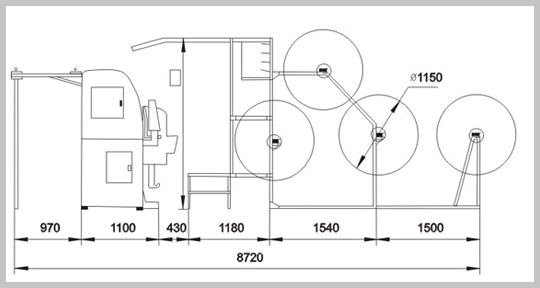

Installation Layout:
